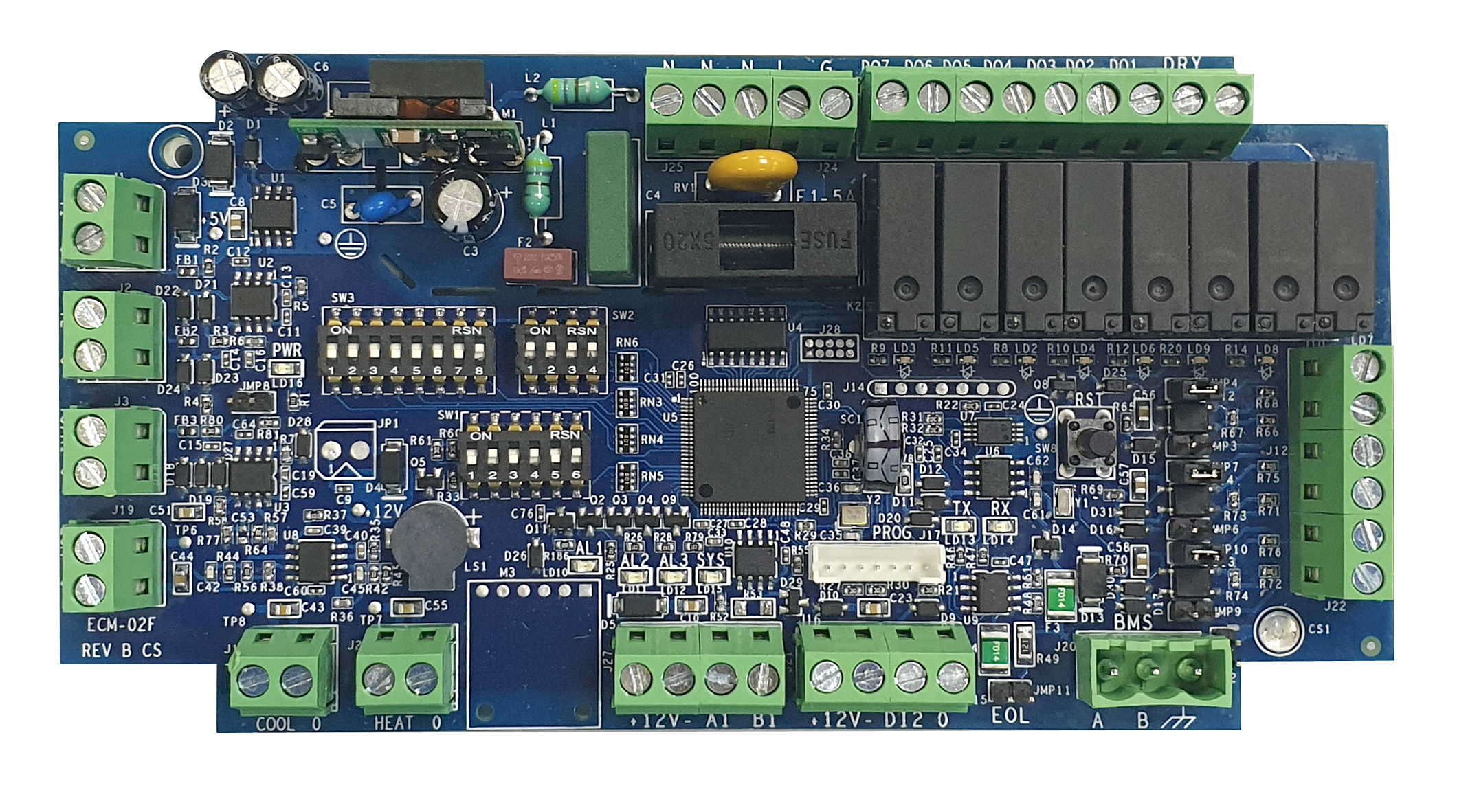

MIGA/C

The MIGA/C is a compact DDC controller designed for a wide range of HVAC applications.

It features BACnet MS/TP and MODBUS RTU communication for seamless integration with Building Management Systems (BMS) and Smart Home platforms.

Its compact design makes it ideal for installation in space-constrained applications, while compatibility with a variety of user-friendly room modules and an optional remote control ensures flexible and convenient operation.

Key Features

8 Digital Outputs (DO)
3 Analog Outputs (AO)
3 Temperature Sensor Inputs
4 Digital Inputs (DI)
110–230 VAC power supply (24 VAC version also available)
Suitable for both fan coil and air conditioning applications
Ideal for commercial and residential HVAC systems
Controls up to:
- 2 cooling stages
- 4 heating stages
- 3 fan speeds or a variable fan speed (VFS)
Plastic enclosure with DIN rail mounting – optional

Compact size. Suitable for most HVAC systems
Supports BACnet and MODBUS protocols
Easy configuration with DIP Switches
Full access to all the controller parameters from the B.M.S. menu and the user interface panel
3 Temperature readings inputs from an External sensors
I/O list:
- 8 D/O – Maximum 3A each, 5A total
- 3 A/O – 0-10V
- 4 D/I
- 3 Temperature sensors inputs (A/I)
- RS485 terminals (A/B)
- Panel/user interface terminals (R/C/A1/B1)

Can be placed on a DIN Rail using plastic base
Plastic cover – optional
°F/°C scale
Occupancy sensor input + 12VDC power supply to the sensor, for energy saving
Economy Mode
Freeze Protection algorithm built-in– adjustable temperatures
Auto Fan (fan on demand)
Compressor protection delay timer
H/P and H/C heating configurations

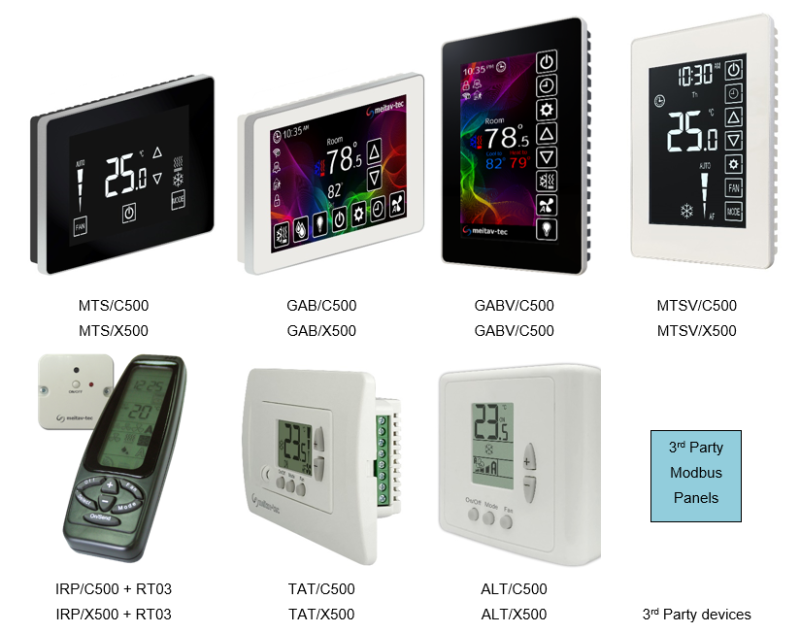

Optional panels:

P/N:

MIGA/C
